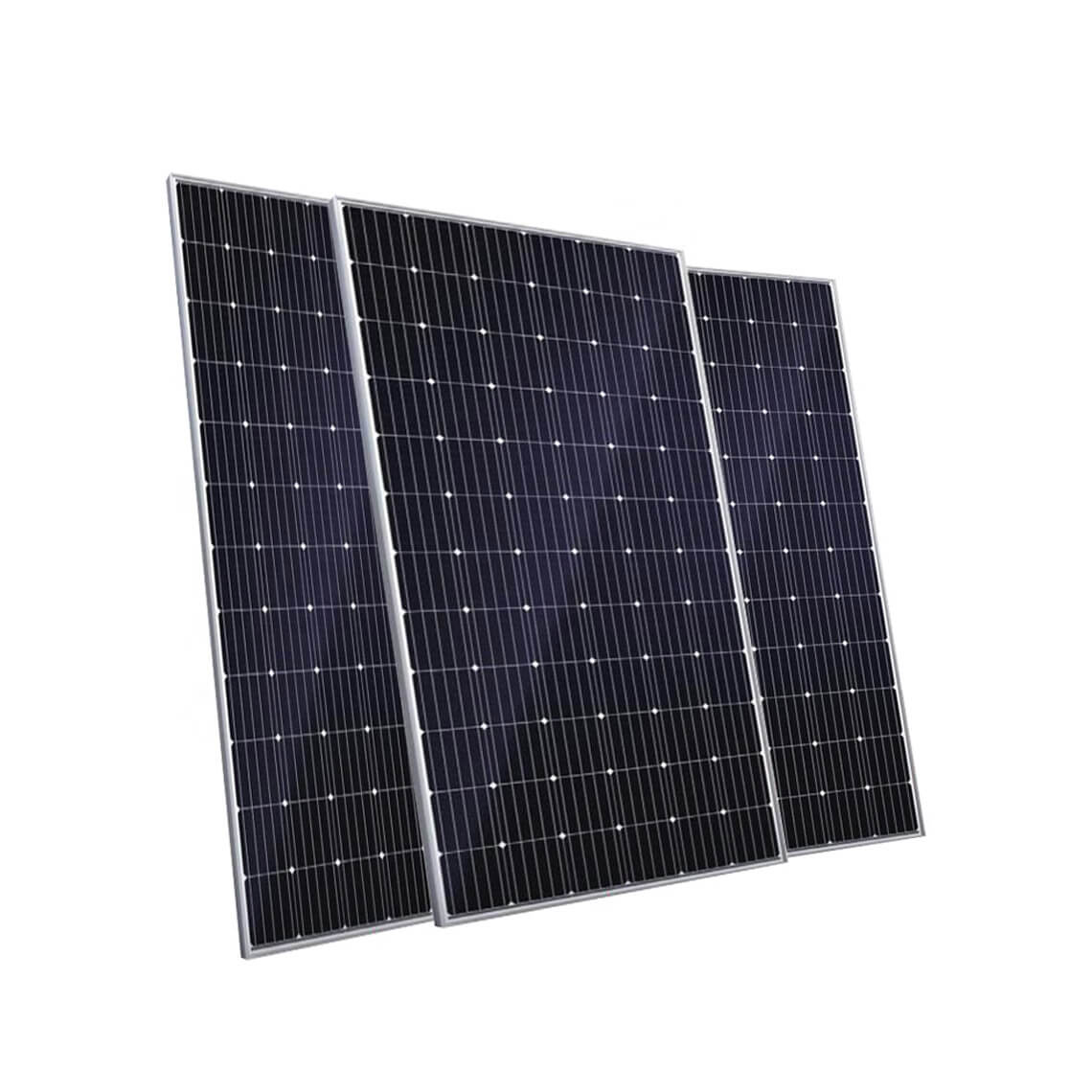

iTel 410W Solar Panel 20.97% module efficiency with 108 Mono cells (182*91mm)

Product Description

itel 410w Solar Panel

410W High-Efficiency PV Module

Key Features:
✔ Half-Cut Cell Technology – Minimizes internal resistance and energy loss for higher efficiency.
✔ PID Resistance – Certified by TUV Nord, ensuring long-term reliability in harsh environments.
✔ Heat Spot Reduction – Innovative design lowers hot spot temperatures, enhancing durability and output.
✔ Extreme Weather Resistance – Rated for 2400Pa wind and 5400Pa snow loads (Class C certified).
✔ Cost-Efficient – Higher energy yield reduces overall system costs per kWh.

Electrical Specifications (STC):

• Peak Power: 410W
• Maximum Power Voltage (Vmp): 31.46V
• Maximum Power Current (Imp): 13.04A
• Open Circuit Voltage (Voc): 37.45V (±3%)
• Short Circuit Current (Isc): 13.85A (±3%)
• Module Efficiency: 20.97%
• Maximum System Voltage: 1500V

Mechanical Specifications:

• Dimensions: 1722 × 1134 × 30mm
• Weight: 21.5kg
• Frame: Anodized aluminum (silver)
• Front Glass: 3.2mm high-transmission tempered glass
• Junction Box: IP68-rated, 3 bypass diodes
• Cables: 4.0mm², 350mm length (positive & negative)

Certifications & Compliance:

• TUV Nord PID Tested
• Class II Safety
• IP68 Connectors

Packaging:

• 37 modules per pallet
• 962 modules per 40HQ container

Ideal For:

• Residential rooftops
• Commercial solar projects
• Off-grid systems
