3kW / 3.6kVA Off Grid Inverter Hybrid 24V

⚡ IPV‑3K24U Off‑Grid Inverter – 3kW / 3.6KVA 24V MPPT Pure Sine Wave | Dual Charging | IP54 Rated | 3 Years Replacement Warranty Engineered for larger off-grid solar installations and reliable backup power, the IPV‑3K24U combines advanced MPPT charging, pure sine wave output, and high surge capacity. Whether for homes, shops, or offices, it ensures your essential appliances remain powered, day and night.

Key Features at a Glance:

  • 1300W Solar Input with Advanced MPPT
  • 24V Battery Bank Support
  • 3,000W Pure Sine Wave Output (6,000W Surge)
  • Overload, Surge, Short Circuit & Temperature Protection
  • IP54 Dust & Splash Resistant Design
itel 3kW Hybrid Solar Inverter – 24V, Pure Sine Wave (Powers ACs, TVs, Fridge) 1itel 3kW Hybrid Solar Inverter – 24V, Pure Sine Wave (Powers ACs, TVs, Fridge) 2
Quick View
Add to cart

itel 3kw Inverter Off-Grid (3000W) 24V IP54 1Phase IPV-3K24U

₦330,000.00

Feature Highlights: itel 3Kw /3.6kva Off-grid Hybrid Inverter

Dual Charging Power Supports both solar MPPT input and AC generator/utility input for flexible charging options.

Powerful 3kW Output Runs larger appliances such as refrigerators, pumps, freezers, and multiple electronics simultaneously.

Surge Capacity of 6,000W Ideal for startup loads like compressors and motors, with 200% surge handling for 2 seconds.

High-Efficiency MPPT Controller Maximizes solar output with ≥99.9% MPPT efficiency, ensuring better charging in varying sunlight.

Dust & Splash Protected (IP54) Reliable operation in indoor and semi-outdoor environments like garages, balconies, and utility rooms.

Compact and Lightweight Design At just 3.4kg, it’s one of the lightest in its class—easy to install and maintain.

Technical Specifications

🔆 PV / Solar Input

ParameterSpecification
Max PV Input Power1300W
MPPT Operating Range30V – 120V
Start-Up Voltage~145V
Max PV Input Current25A
MPPT Efficiency≥ 99.9%
Number of MPPTs1

🔌 AC Output (Inverter Mode)

ParameterSpecification
Rated Output Power3,000W
Surge Power6,000W (2s)
Output Voltage220/230/240V ±2%
Frequency50/60Hz
Output WaveformPure Sine Wave
THD< 3%
Overload Capability150% for 10s, 200% for 2s
Transfer Time≤ 20ms

🔋 Battery Input & Charging

ParameterSpecification
Battery Voltage24V (20–30V operating range)
Battery TypesLithium, Lead-Acid, User-Defined
Max PV Charging Current100A
Max AC Charging Current125A
Charging Mode3-stage smart charging

🧱 Physical & Environmental

ParameterSpecification
Dimensions100 × 272 × 335 mm
Net Weight5.4 kg
Operating Temp–10°C to 55°C (derated above 45°C)
Humidity0–95% RH (non-condensing)
AltitudeMax 4,000m (derating above 2,000m)
CoolingIntelligent Fan
Noise< 55dB (with PV), < 45dB (no PV)

Installation Guidance

  • Battery Bank: Must use 24V system (e.g., 2×12V batteries in series or a single 24V lithium pack).
  • Solar Setup: Ensure total panel Voc ≤ 145V. Ideal for 3–5 panels of 250W–450W range.
  • Mounting: Wall-mount only. Install in a shaded, well-ventilated area to allow airflow.
  • AC Output: Connect to protected circuits; suitable for refrigerators, fans, TVs, lighting, computers.

🔧 Wiring Diagram:

solar power installation diagram showing inverter, panel input, ac input and load output

The following illustration shows the basic application for this inverter / charger, it also include following devices to have a complete running system:
AC input (Unity – Nepa or Generator)
Solar Panel (option)

This inverter can power all kinds of appliances in the home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner, but the load wattage should not be more than 2600W

Control Panel & Indicators

The front panel of the IPV‑3K24U 3.6KVA Inverter includes:

  • LED Status Lights: PV charging, battery full, fault, etc.
  • Push Buttons: Power ON/OFF, setting modes
  • Buzzer: Audio alerts for errors or events
  • Communication Port: For diagnostics (RS485/Modbus)

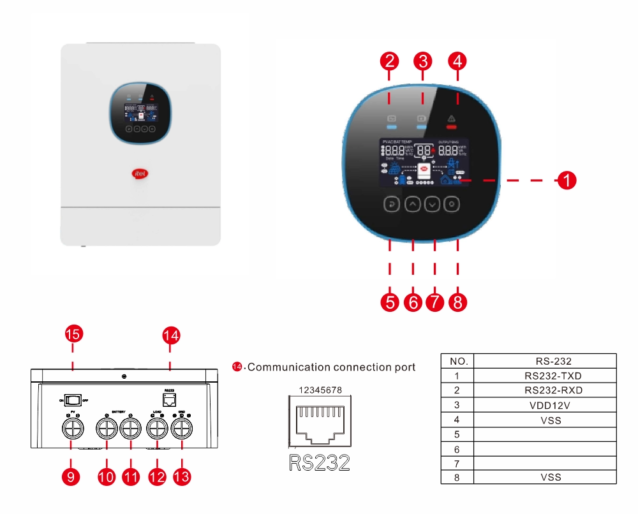

Product Overview

product overview for 1kw - 3kw inverter
  1. LCD display
  2. Output indicator
  3. Charging indicator
  4. Fault or warning indicator
  5. ESC button
  6. Up button
  7. Down button
  8. Enter button
  1. PV input connection port
  2. Battery + connection port
  3. Battery - connection port
  4. AC output port
  5. AC input port
  6. Communication connection port
  7. Switch numbered

Safety & Compliance

Comprehensive Protections

  • Overload

  • Short Circuit

  • Over-Temperature

  • Battery Overcharge / Deep Discharge

  • PV Reverse Polarity

🛡️ Certifications:

  • IEC 62109-1: Safety of power converters for use in photovoltaic systems

  • IEC 62109-2: Additional requirements for inverters

  • IEC 61683: Efficiency of PV system power conversion

Use‑Case Scenarios

💡 Typical Setup Example:

⚠️ Caution: To power appliances, the inverter must be connected to a solar panel (or utility power/NEPA) and a battery, its not all in one system.

🔋 Battery Recommendation:
2× 12V 200Ah lead-acid batteries (in series)
Or: 24V 200Ah lithium ion batteries

☀️ Solar Panel Recommendation:
3× 410W Panel (totaling ~1,300W)

  • 1 Deep Freezer (400–600W)
  • 1 Fridge (250W)
  • 3 Fans (90W each)
  • 8 LED Bulbs (9W each)
  • 1 TV + Decoder + Soundbar (150W total)
  • 2 Laptop / Charging station
  • 4 Phone chargers
itel 3kW Hybrid Solar Inverter – 24V, Pure Sine Wave (Powers ACs, TVs, Fridge) 1itel 3kW Hybrid Solar Inverter – 24V, Pure Sine Wave (Powers ACs, TVs, Fridge) 2
Quick View
Add to cart

itel 3kw Inverter Off-Grid (3000W) 24V IP54 1Phase IPV-3K24U

₦330,000.00

Warranty & Support

🛠️ Warranty:

  • 3 Years Replacement

  • 5 Years Service Support

📞 Support Contact:

Downloads & Resources

📄 Download Full User Manual (PDF)

📄 Download Technical Datasheet (PDF)

Frequently Asked Questions (FAQ)

What’s the difference between 1.5kw (IPV‑1K512U) inverter and 3kw inverter (IPV‑3K24U)?

A: The 3kw Inverter IPV‑3K24U delivers 3x more power and supports 24V batteries, ideal for medium-sized setups or larger appliances.



A: Yes. Its 3kW continuous power and 6kW surge make it ideal for such appliances.

A: Yes, it supports dual charging inputs — MPPT from solar and AC charging from mains/generator.

A: The inverter will trigger overload protection and shut down safely to avoid damage.
